Carton erector

Quantity :

Contact Now

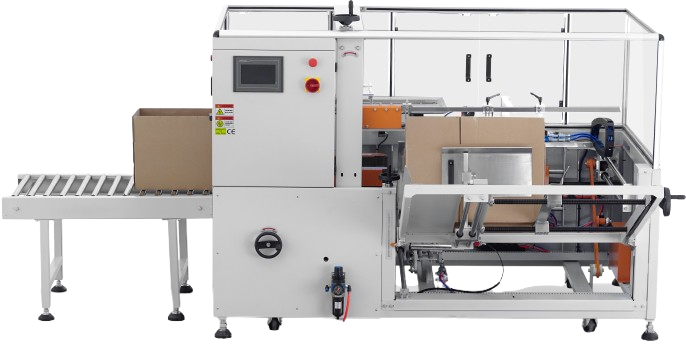

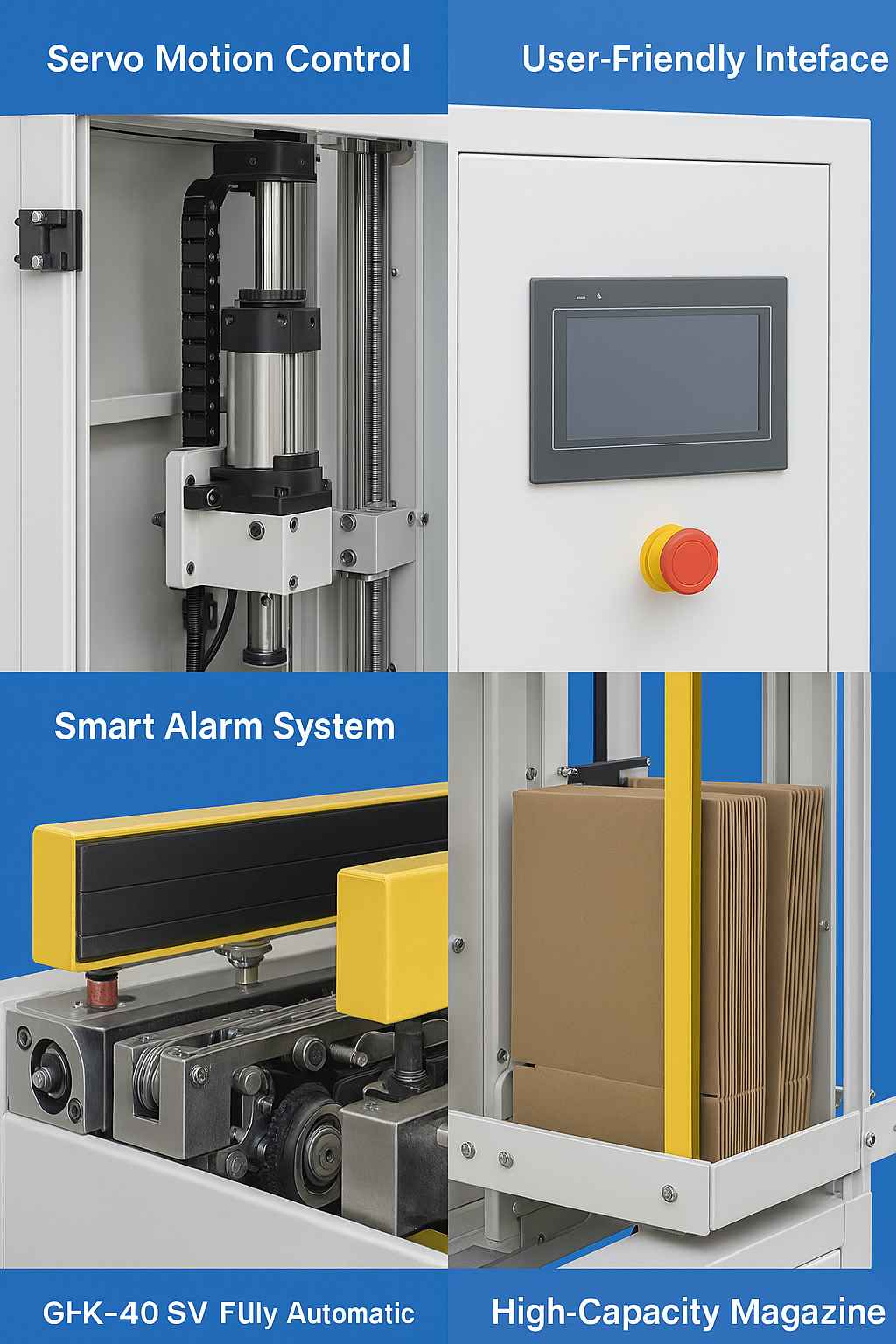

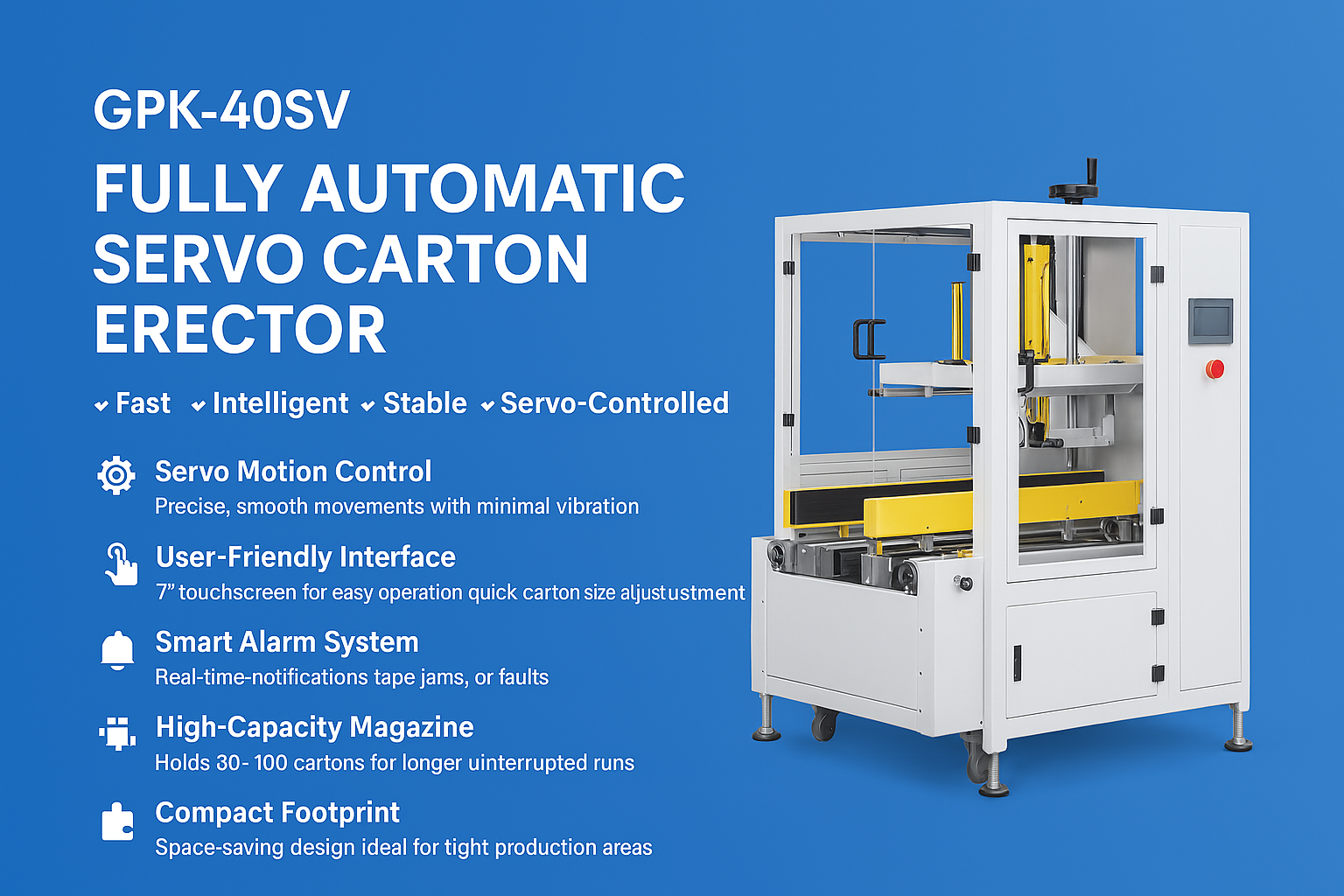

The GPK-40SV is a high-speed, fully automatic carton erector powered by servo technology. It efficiently opens, forms, and seals the bottom of cartons with minimal operator input. Designed for continuous, high-volume operations, this machine helps you cut labor costs and boost packaging line productivity.

Model	GPK-30H15
Carton Erecting Speed	Up to 12 cartons/min
Carton Size (L×W×H)	270–450 × 150–400 × 100–400 mm
Power Supply	220V, 50/60Hz, 2050W
Air Pressure	6 kg/cm²
Tape Width	60–75 mm
Magazine Capacity	80–100 pcs (length 800–1000mm)
Table Height	620 ± 50 mm
Machine Dimensions	2150 × 2150 × 1750 mm
Machine Weight	Approx. 580 kg

Component	Brand
PLC Controller	Siemens
Servo Motor	Inovance
Touchscreen Kunlun	Tongtai
Sensor	LEUZE (Germany)
Bearings	HRB / YTP
