Model No: DT8

Dual-Track 8-Channel Electronic Counting Machine

Quantity :

Contact Now

The DT8 is a high-precision, dual-track, 8-channel electronic counting machine designed for counting and filling capsules, tablets, granules, candies, hardware, and plastic components. Widely used in the pharmaceutical, food, hardware, chemical, plastics, and health products industries, this machine delivers efficient and reliable counting for various production needs.

7-inch full-color touchscreen for easy speed adjustment and intuitive operation.
User-friendly HMI interface simplifies the setup and monitoring process.
Dual-track, 8-channel design significantly increases counting speed and efficiency.
Memory for 100 parameter sets allows rapid product changeovers without reconfiguration.
Flexible compatibility with different product shapes and sizes.
Adjustable counting head height from 50–250mm to accommodate various bottle sizes.
Dust-proof protective cover ensures hygiene and product safety.

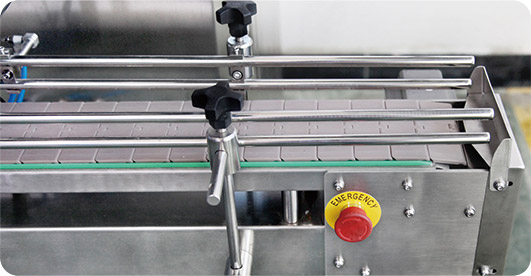

Integrated conveyor interface for seamless connection with upstream and downstream equipment.
Infrared electronic counting system automatically detects material properties for accurate settings.
High-speed CAN bus control supports easy expansion and stable operation.

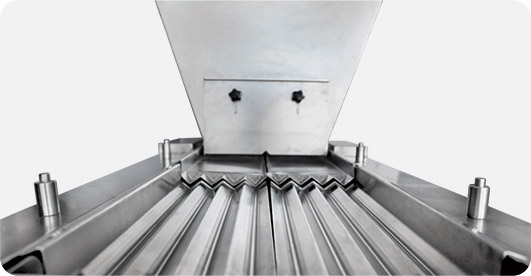

Two-stage vibrating feeder ensures smooth material flow and prevents clogging.
Independent dual-channel control allows flexible selection between single or dual output modes.
Precision infrared counting head provides real-time monitoring and fast response for accurate counting.

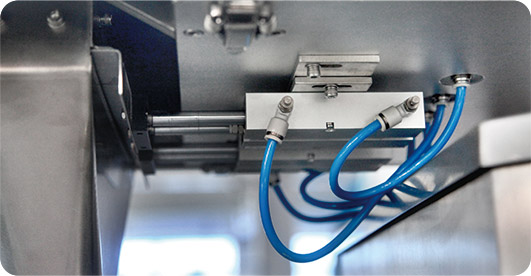

Electric gate system enables rapid material cutoff for precise dosing.

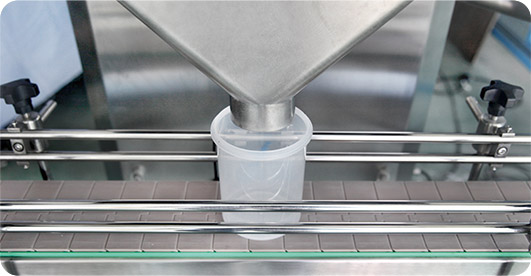

One-touch automatic lifting intelligently matches different bottle heights for simplified operation.

Parameter	Specification
Model	DT8
ID Code	DT8-1-1
Number of Vibratory Tracks	8
Applicable Product Size	φ5–12mm, L5–25mm
Bottle Diameter	20–100mm
Bottle Height	40–240mm
Counting Speed	4000 pcs/min
Filling Speed	10–60 bottles/min
Power Supply	220V / 800W / 50/60Hz / 4A
Machine Dimensions	1350(L) × 1400(W) × 1790(H) mm
Machine Weight	400 kg
