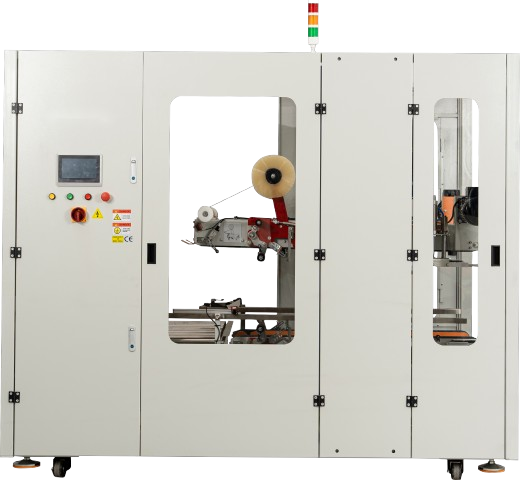

Model No: GPH-655SV

Four-Side Corner Sealing Machine

Quantity :

Contact Now

Model: GPH-655SV
Type: Servo-Controlled Automatic Four-Corner Sealing Machine
Sealing Speed: 6-12 cartons/min (adaptive/fixed modes)
Key Advantages: Adaptive sizing, servo precision, industrial durability
Industries: Food, pharmaceuticals, tobacco, automotive, electronics, logistics

Servo-Driven Automation – Auto-adjusts to carton sizes (L320-600×W200-500×H180-500mm) without manual intervention.
Dual Operation Modes – Adaptive sensing (6-7/min) or fixed-size preset (10-12/min) for flexibility.
Industrial-Grade Build – One-piece steel frame + stainless rollers for 20% longer lifespan.

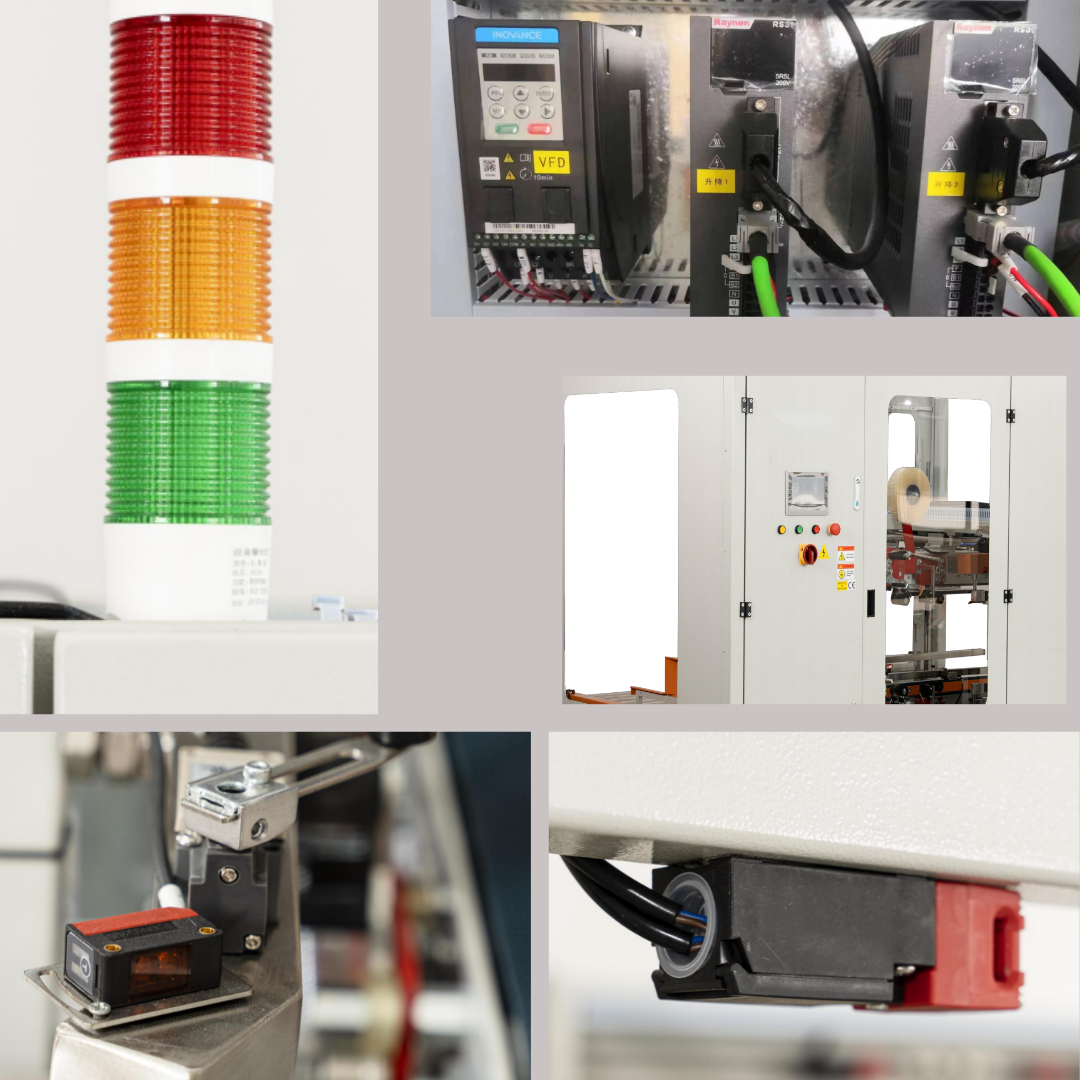

Safety First – Protective door with auto-stop + tri-color alarm lights.
Smart HMI – Touchscreen (Kunlun Tongtai) + Siemens PLC for real-time monitoring.
Aesthetic Design – Acrylic-metal hybrid panels for durability and visual appeal.

Parameter	Specification
Sealing Speed	Adaptive: 6-7/min; Fixed: 10-12/min
Carton Size Range	L320-600×W200-500×H180-500mm
Power Supply	220V, 50/60Hz (1 Phase)
Power Consumption	2500W
Air Pressure	0.6-0.8Mpa
Machine Dimensions	L2120×W1620×H1650mm
Weight	950kg
