Model No: GPL-5545DH + GPS-5030LW

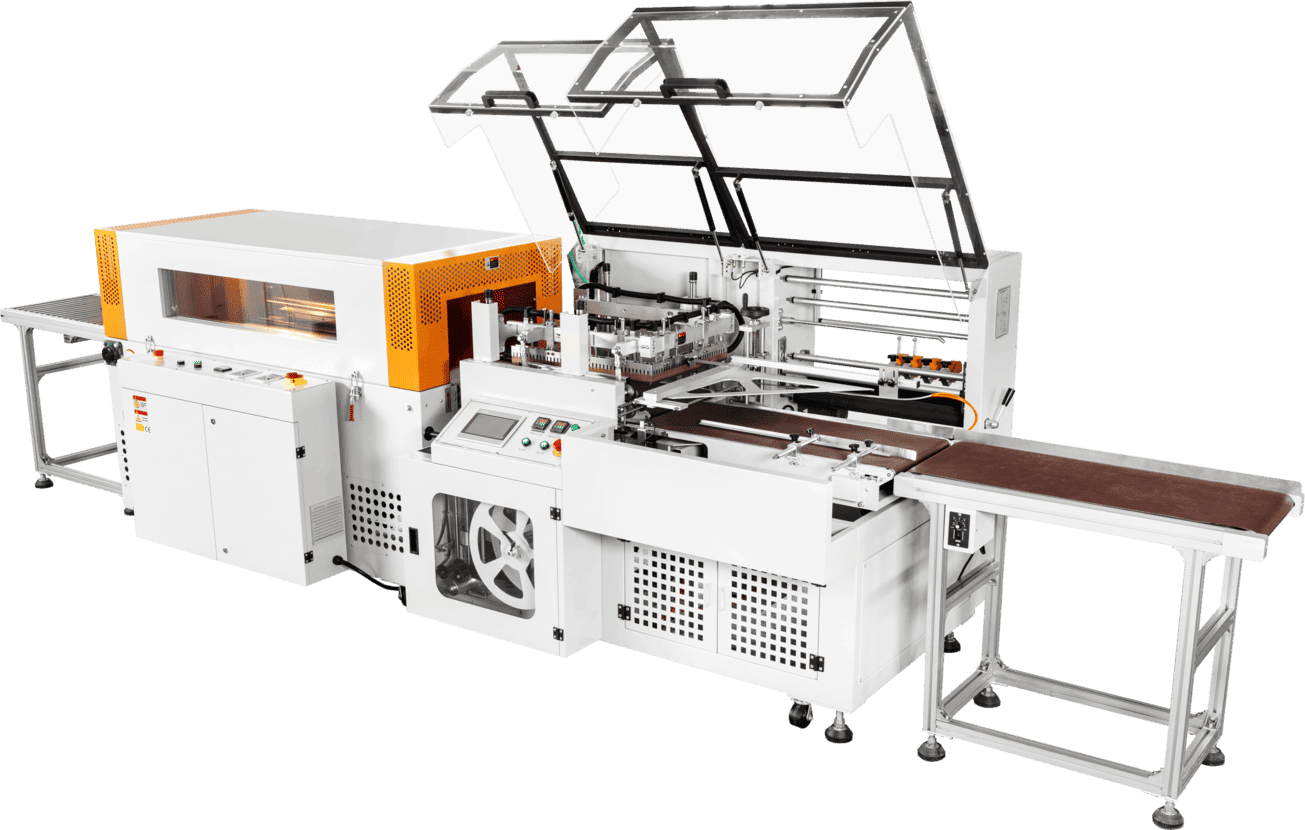

High-Speed Vertical Seal and Cut Shrink Packaging Machine
Quantity :
add to cart
Contact Now

Product Name: High-Speed Vertical Seal and Cut Shrink Packaging Machine
Model: GPL-5545DH + GPS-5030LW
Industries: Household products, printing, color boxes, photo frames, electronics, pharmaceuticals, automotive parts, food, etc.
Film Types: POF, cross-linked film, PE film
Packaging Effect: Fine, firm sealing line; smooth and wrinkle-free shrink-wrapped packaging.
Model: GPL-5545DH + GPS-5030LW
Industries: Household products, printing, color boxes, photo frames, electronics, pharmaceuticals, automotive parts, food, etc.
Film Types: POF, cross-linked film, PE film
Packaging Effect: Fine, firm sealing line; smooth and wrinkle-free shrink-wrapped packaging.

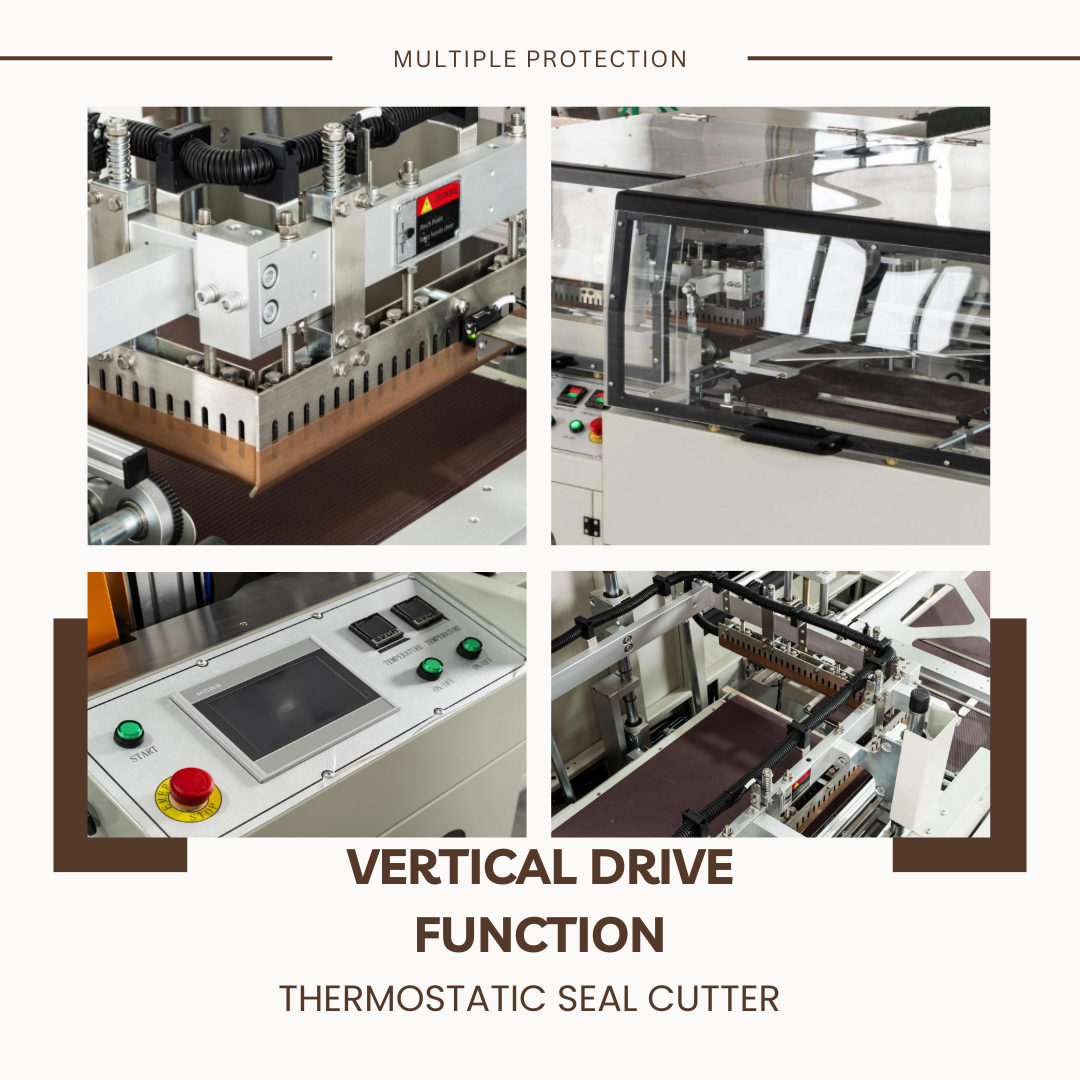

Vertical Drive Sealing: Vertical drive ensures precise center alignment of sealing lines, avoiding wrinkles typical in L-type sealers.
Adjustable Height: Easy height adjustment via handwheel, no need for mold changes to accommodate different sizes.
Film Length Control: Combines photoelectric sensor and timer for precise film length control, saving material.
Fully Automatic: Servo control automates feeding, film sleeving, sealing, and shrinking for high efficiency.
Safety Features: Triple protective covers with safety cut-off and alarm functions for secure operation.
Aesthetic Design: Wider frame with dual transparent organic glass protective covers for an elegant and modern look.
Adjustable Height: Easy height adjustment via handwheel, no need for mold changes to accommodate different sizes.
Film Length Control: Combines photoelectric sensor and timer for precise film length control, saving material.
Fully Automatic: Servo control automates feeding, film sleeving, sealing, and shrinking for high efficiency.
Safety Features: Triple protective covers with safety cut-off and alarm functions for secure operation.
Aesthetic Design: Wider frame with dual transparent organic glass protective covers for an elegant and modern look.
|
Parameter |
GPL-5545DH |
GPS-5030LW |
|
Packaging Speed |
20-60 pcs/min |
20-60 pcs/min |
|
Packaging Size |
W+H<380mm, L+H<450mm |
L≤500mm, W+H≤450mm |
|
Knife Size |
Horizontal: 450mm, Vertical: 555mm |
- |
|
Oven Size |
- |
Length: 1500mm, Height: 500mm |
|
Max Temp |
240°C |
200°C |
|
Power Supply |
3-Phase 380/220V, 50/60Hz |
3-Phase 220V/380V, 50-60Hz |
|
Power |
4.0 kW |
15.5 kW |
|
Max Current |
10A |
25A |
|
Air Pressure |
0.6-0.85 MPa |
- |
|
Table Height |
850-900mm |
850-900mm |
|
Machine Dimensions |
1785mm×1420mm×1340mm |
1850mm×1095mm×1325mm |
|
Weight |
650kg |
500kg |

High Efficiency: Servo motor + PLC control, stable and precise, up to 60pcs/min.
Intelligent Temperature Control: Constant-temperature sealing blade with anti-stick coating.
Safety: Triple protective covers and anti-cut safety features.
Visual Monitoring: Shrink chamber with viewing window for real-time monitoring.
User-Friendly: Human-machine interface for easy operation and adjustment.
Intelligent Temperature Control: Constant-temperature sealing blade with anti-stick coating.
Safety: Triple protective covers and anti-cut safety features.
Visual Monitoring: Shrink chamber with viewing window for real-time monitoring.
User-Friendly: Human-machine interface for easy operation and adjustment.
| Component | Brand |
| Servo Motor | Mitsubishi |
| PLC | Omron |
| Circuit Breaker | Schneider |
| Conveyor Motor | Taibang |
| Fan | Tianyang |
| Touch Screen | MCGS |
| Inverter | Mitsubishi/Hirain |
| Temperature Controller | Delta |
| Buttons & Relays | IDEC |
| Photoelectric Sensor | Panasonic |
| Pneumatic Components | Airtac |
| Bearings | Renben/Harbin/YTP |
Notes:
Product configurations are subject to the contract.
Product configurations are subject to the contract.
Customization options are available. Contact us for details.
