Model No: IW

JW Linear Weigher

Quantity :

Contact Now

The JW Linear Weigher is specially designed for quantitative weighing of fine powders and small uniform granules, such as:
sugar, salt, seeds, rice, sesame, MSG, chicken essence, milk powder, coffee, and seasoning powder.
It provides stable and accurate weighing performance for the food, agricultural, and chemical industries.

Advanced Modular Control System – Adopts a new high-integration weighing control module, ensuring stable and reliable performance.
Automatic Vibration Adjustment – Vibration amplitude is automatically optimized for smoother feeding and easier setup.
Multi-Material Weighing – Capable of weighing multiple materials simultaneously for mixed packaging applications.
In-Process Parameter Adjustment – Parameters can be modified directly during production without stopping the machine.
Stepless Vibration Feeding System – Ensures even material flow and an extended weighing range.

Full Stainless Steel Construction – Hygienic design meeting food safety standards.
Free-Fall Fast Feeding Mode – Reduces weighing time compared to traditional vibration feeding.

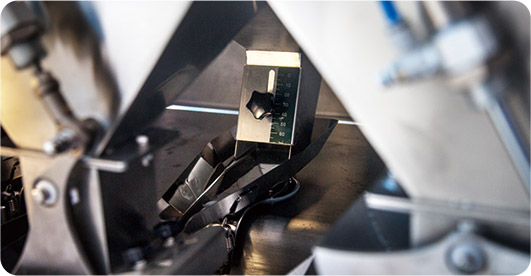

Additional Vibration Plate for Precision Feeding – Enables precise micro-feeding for improved weighing accuracy.

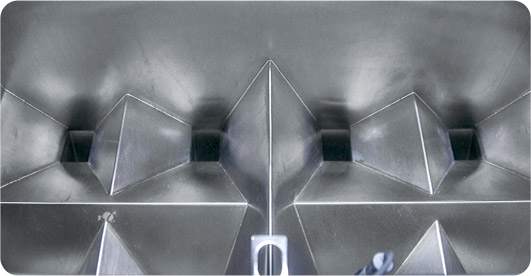

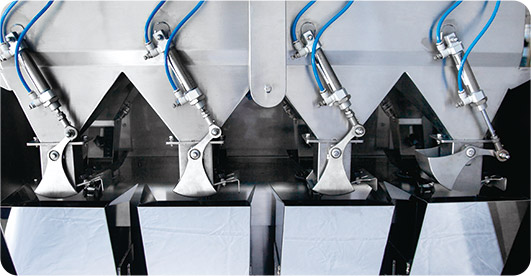

Quick-Release Contact Parts – All material-contact components (storage hopper, discharge hopper, vibration plate, weighing hopper) can be easily disassembled for cleaning and maintenance.

Model	JW
Identification Code	AX4-2-2
Weighing Range	200–4000g
Accuracy	X(1)
Max. Weighing Speed	60 P/M
Hopper Volume	6L
Preset Programs	100
Max. Material Types	4

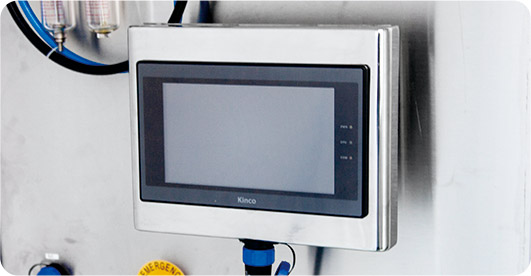

Operation Interface	7-inch Touch Screen
Optional Devices	Pattern Hopper / Collecting Hopper / Data Printer / Overweight Rejection Device
Power Supply	220V / 500W / 50/60Hz / 3A
Packing Dimensions (mm)	1400(L) × 1200(W) × 1190(H)
Net Weight	240kg

Model	JW
Identification Code	AX4-2-2
Weighing Range	200–4000g
Accuracy	X(1)
Max. Weighing Speed	60 P/M
Hopper Volume	6L
Preset Programs	100
Max. Material Types	4
Operation Interface	7-inch Touch Screen
Optional Devices	Pattern Hopper / Collecting Hopper / Data Printer / Overweight Rejection Device
Power Supply	220V / 500W / 50/60Hz / 3A
Packing Dimensions (mm)	1400(L) × 1200(W) × 1190(H)
Net Weight	240kg
