A Deep Dive into the Automated Softgel Counting and Bottling Line

The manufacturing of pharmaceuticals and nutraceuticals demands stringent quality control, especially when it comes to dosage accuracy and production efficiency. For solid oral dosage forms like softgel capsules, achieving both high throughput and absolute counting precision requires state-of-the-art automation.

This video provides an excellent visual demonstration of a modern Softgel Capsule Counting and Bottling Line, illustrating a seamless, end-to-end packaging process. It highlights how integrated automation elevates production from raw capsule handling to final packaged goods.

The Automated Workflow: Step-by-Step

The showcased line operates as a synchronized system, minimizing human intervention and maximizing output. Here is a breakdown of the critical stages:

1. Bottle Unscrambling and Feeding

The process begins with the efficient handling of empty containers.

• Bottle Unscrambler: Empty plastic bottles are conveyed to an automatic bottle unscrambler (shown around 0:09 to 0:24). This machine automatically orientates and lines up the bottles onto the main conveyor belt, ensuring a steady and continuous flow into the line.

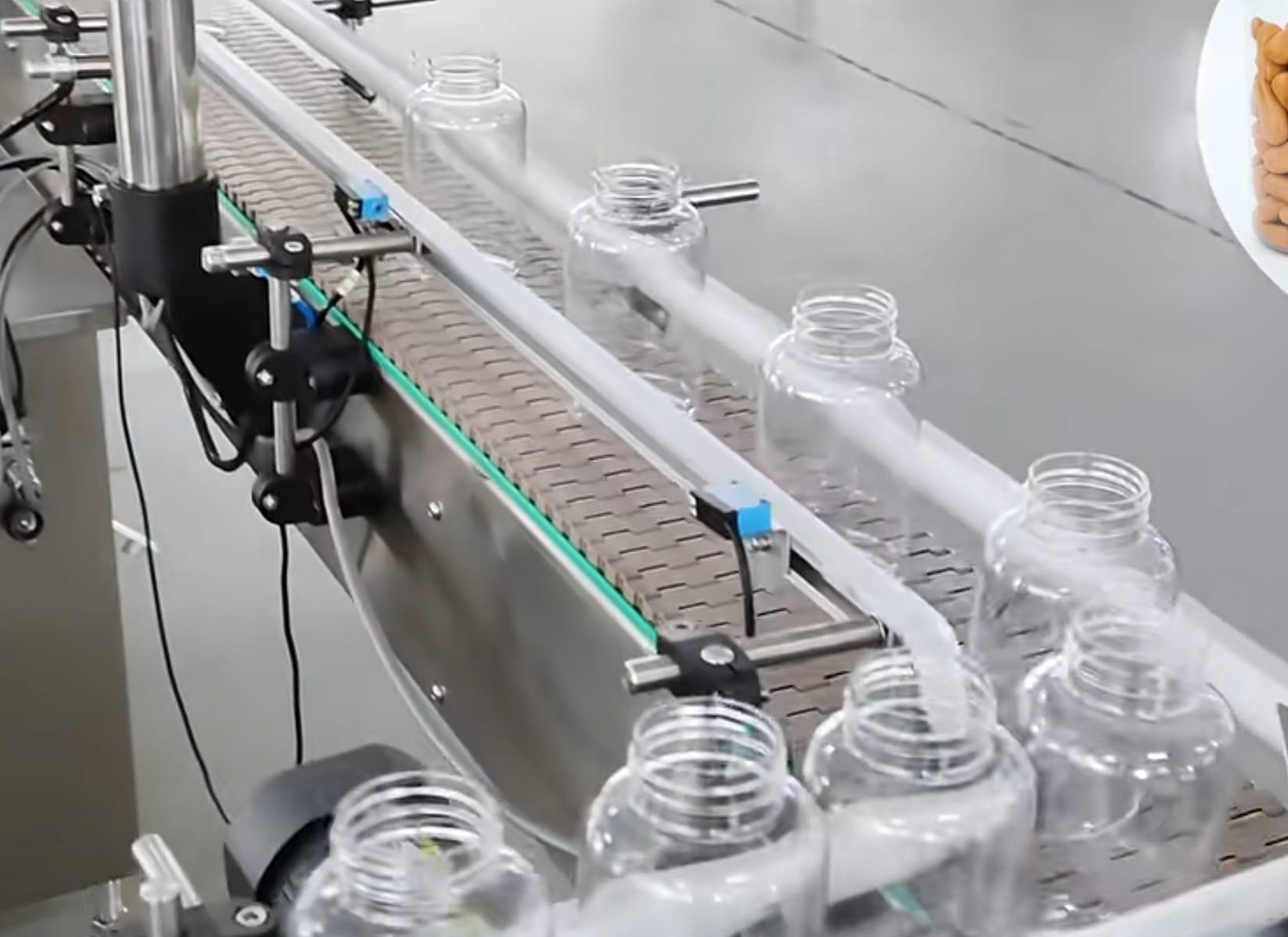

• Conveyor System: The bottles are then accurately spaced and transported along the conveyor, preparing them for the subsequent cleaning and filling stages.

2. Bottle Cleaning (Air Rinser)

Maintaining a sterile environment is paramount in pharmaceutical packaging.

• Air Washing Station: Before filling, the containers pass through a bottle air rinsing machine (seen from approximately 0:31 to 0:37). This system inverts the bottles and uses high-pressure filtered air jets—often coupled with a vacuum exhaust—to remove any dust or particulate matter from the interior, ensuring the containers meet strict Good Manufacturing Practice (GMP) standards for cleanliness.

3. High-Speed Electronic Counting and Filling

This is the heart of the operation, where precision and speed converge.

• Dual-Head Electronic Counter: The video prominently features a high-efficiency dual-head electronic counting machine (0:38 to 1:01). This type of machine is optimized for the unique shape and soft consistency of softgel capsules. It utilizes advanced photoelectric sensor technology across multiple counting channels.

• Precision Counting: Softgels are fed from a hopper onto vibratory plates which smoothly guide them into individual tracks. The sensors count each capsule as it passes through, achieving near-perfect accuracy (typically $\geq 99.9\%$). The dual-head configuration is crucial, as it allows for simultaneous counting into two lanes of bottles, significantly doubling the overall throughput and increasing the line’s efficiency.

• Filling Funnels: Once the pre-set count is reached, a pneumatically controlled gate opens, directing the exact number of softgels through dedicated funnels and into the waiting bottles on the conveyor. The system typically employs a "no bottle, no fill" sensor logic to prevent product waste.





The Advantage of Integrated Automation

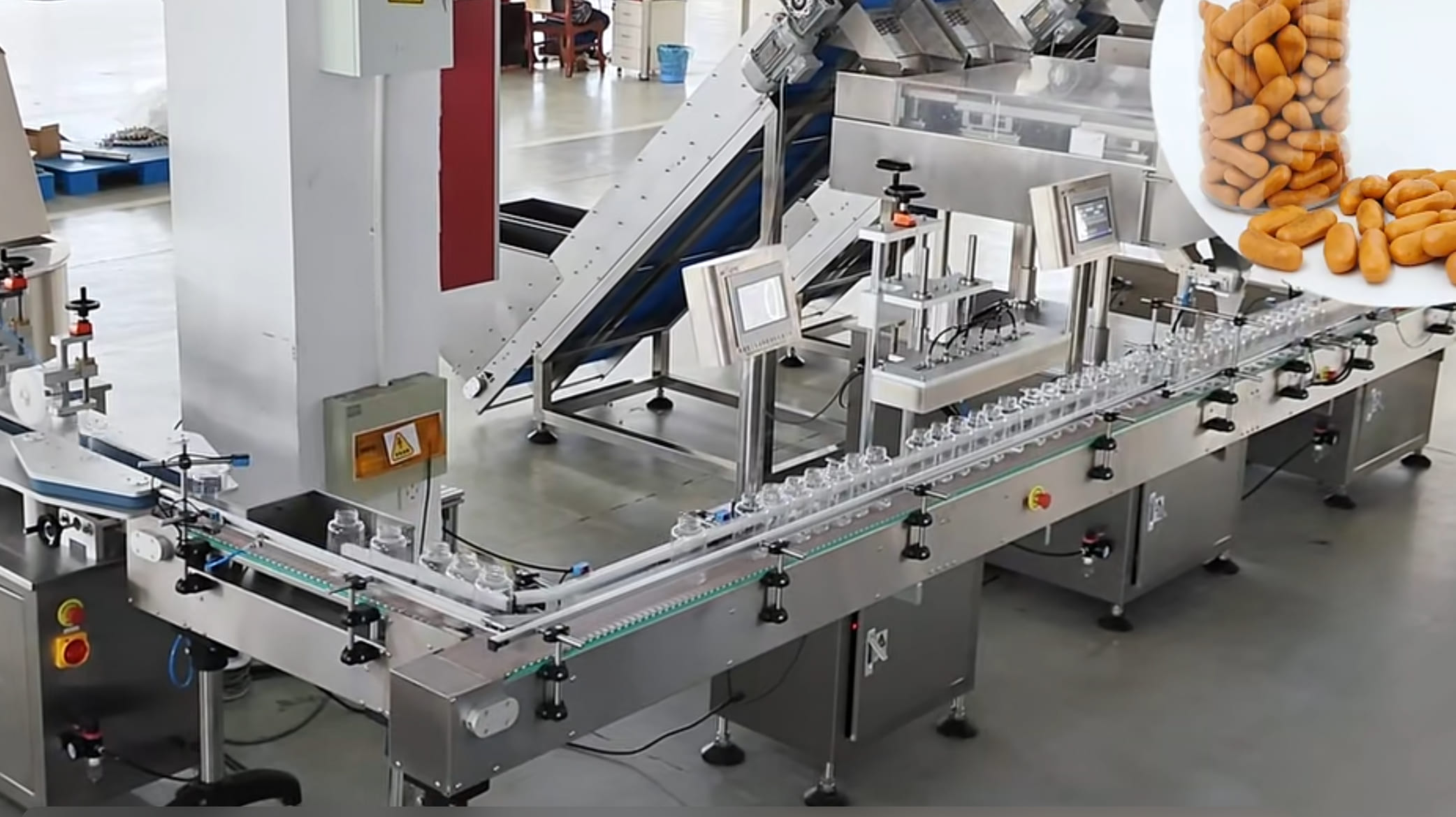

This complete, integrated line, labeled with the Chinese text meaning "Soft Capsule Counting and Bottling Line," offers several competitive advantages in the industry:

• Enhanced Throughput: The synchronized nature, particularly the dual-channel counting mechanism ("双机同步 效率翻倍" - Dual-machine synchronization, double the efficiency), ensures a substantially higher output rate compared to single-head or semi-automatic systems.

• Unmatched Accuracy: The use of sophisticated electronic counting technology virtually eliminates human error and ensures that every container has the correct dosage count, a critical factor for regulatory compliance and consumer safety.

• Versatility: While specifically showcasing softgel capsules (identified by the "外形升级" - Upgraded appearance softgels), similar electronic counters are often adaptable to count various solid forms, including tablets, hard capsules, and coated pills, by simply adjusting parameters via the Human-Machine Interface (HMI).

• GMP Compliance: Constructed with stainless steel (often 304 or 316) and featuring a streamlined design, the equipment is engineered for easy cleaning and minimal cross-contamination risk, fully aligning with global GMP regulations.

In conclusion, this automated softgel counting and bottling line represents the gold standard in pharmaceutical packaging. It is a powerful example of how investment in integrated, high-precision machinery is essential for manufacturers aiming to meet high-volume demands while adhering to the strictest standards of quality and accuracy in the global healthcare market.
