Automating Flat-Product Handling in Packaging Production
In packaging production, handling flat materials efficiently is essential to maintaining a smooth and reliable workflow. Paperboard sheets, carton blanks, and other lightweight products often need to be picked up, positioned, and transferred between processes. When these tasks are performed manually, production teams may face inconsistent feeding, repetitive labor, and unnecessary interruptions.
An automated vacuum pick-and-place system can help address these challenges.
Designed for Controlled Material Transfer

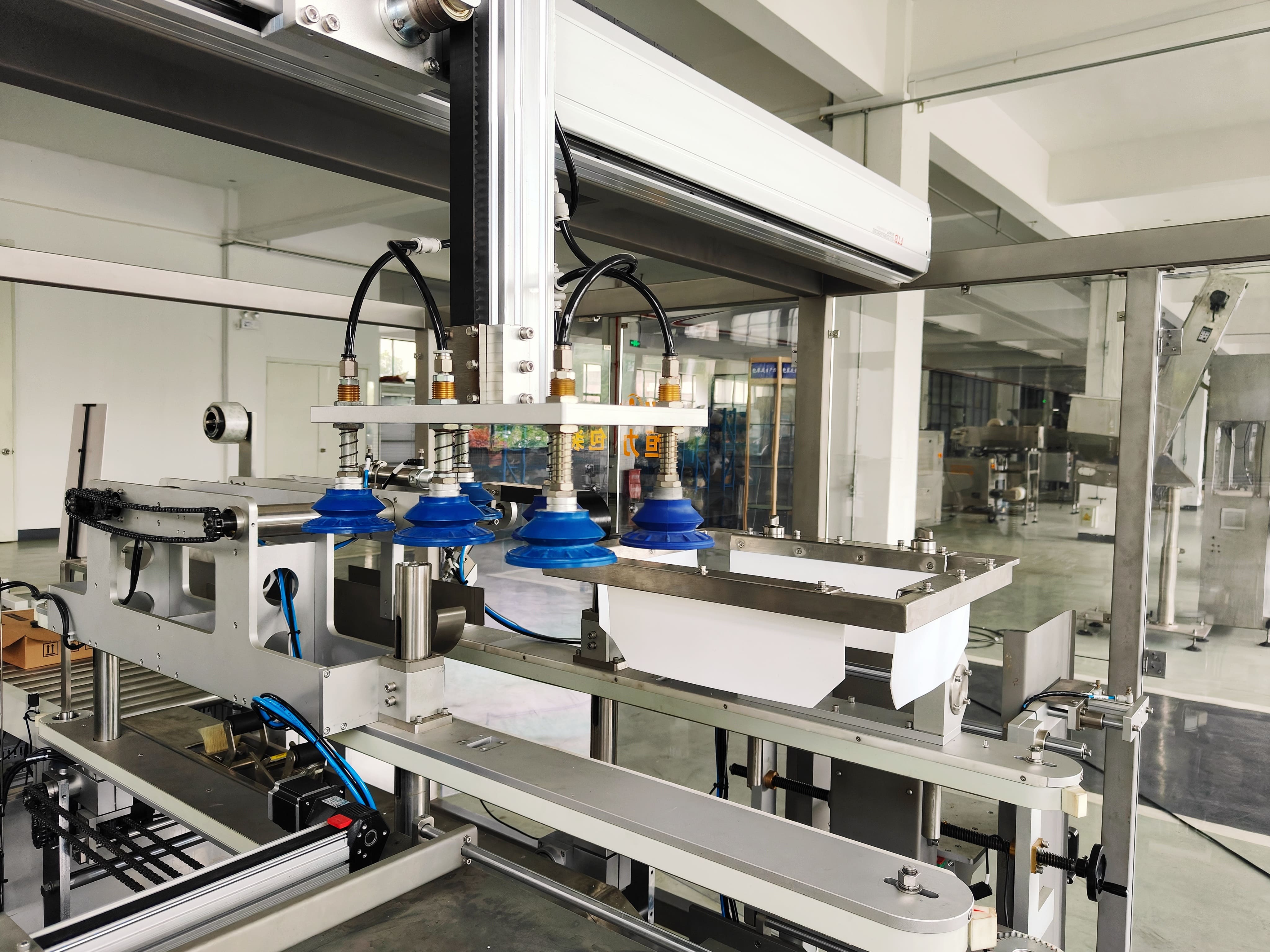

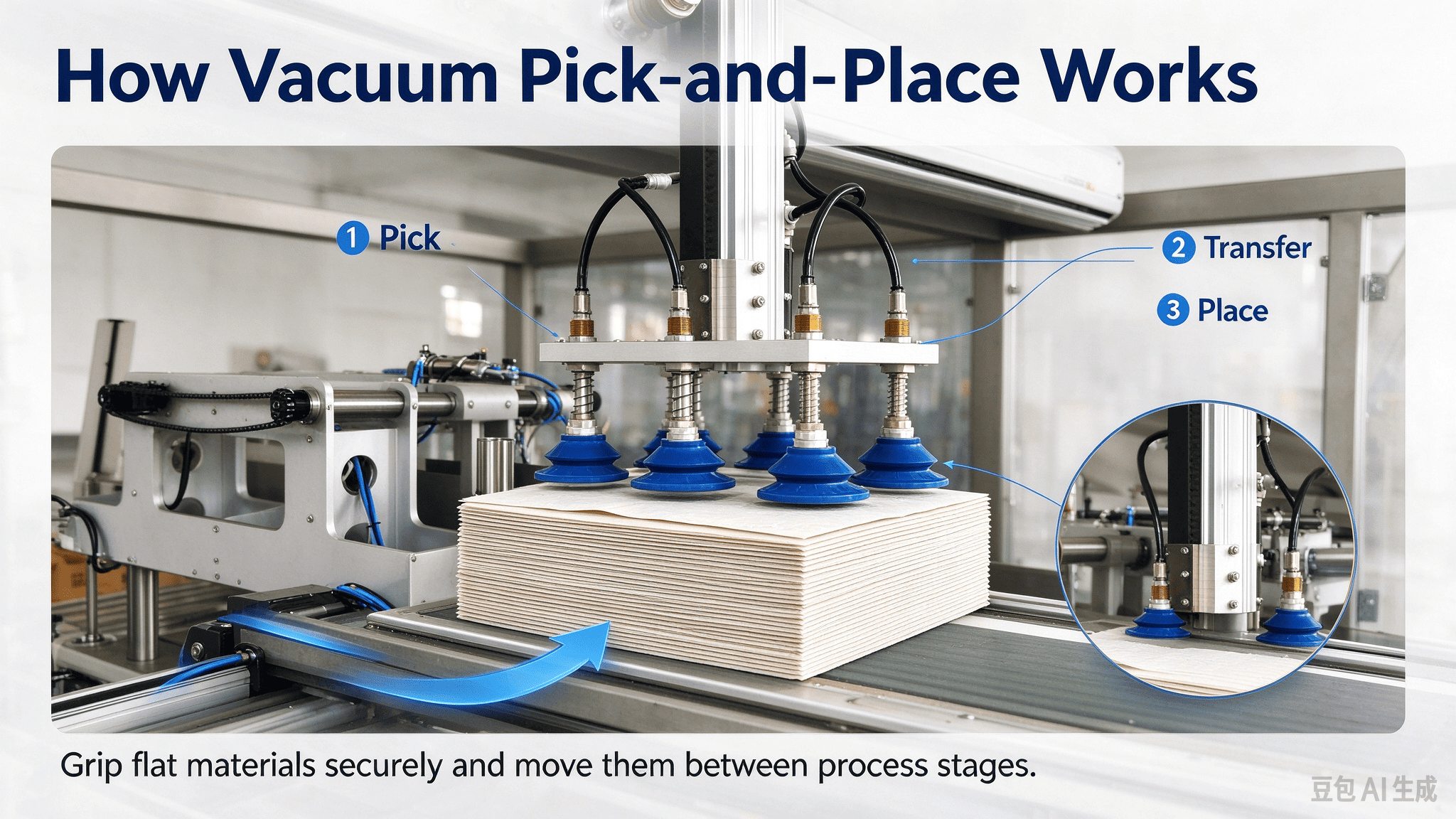

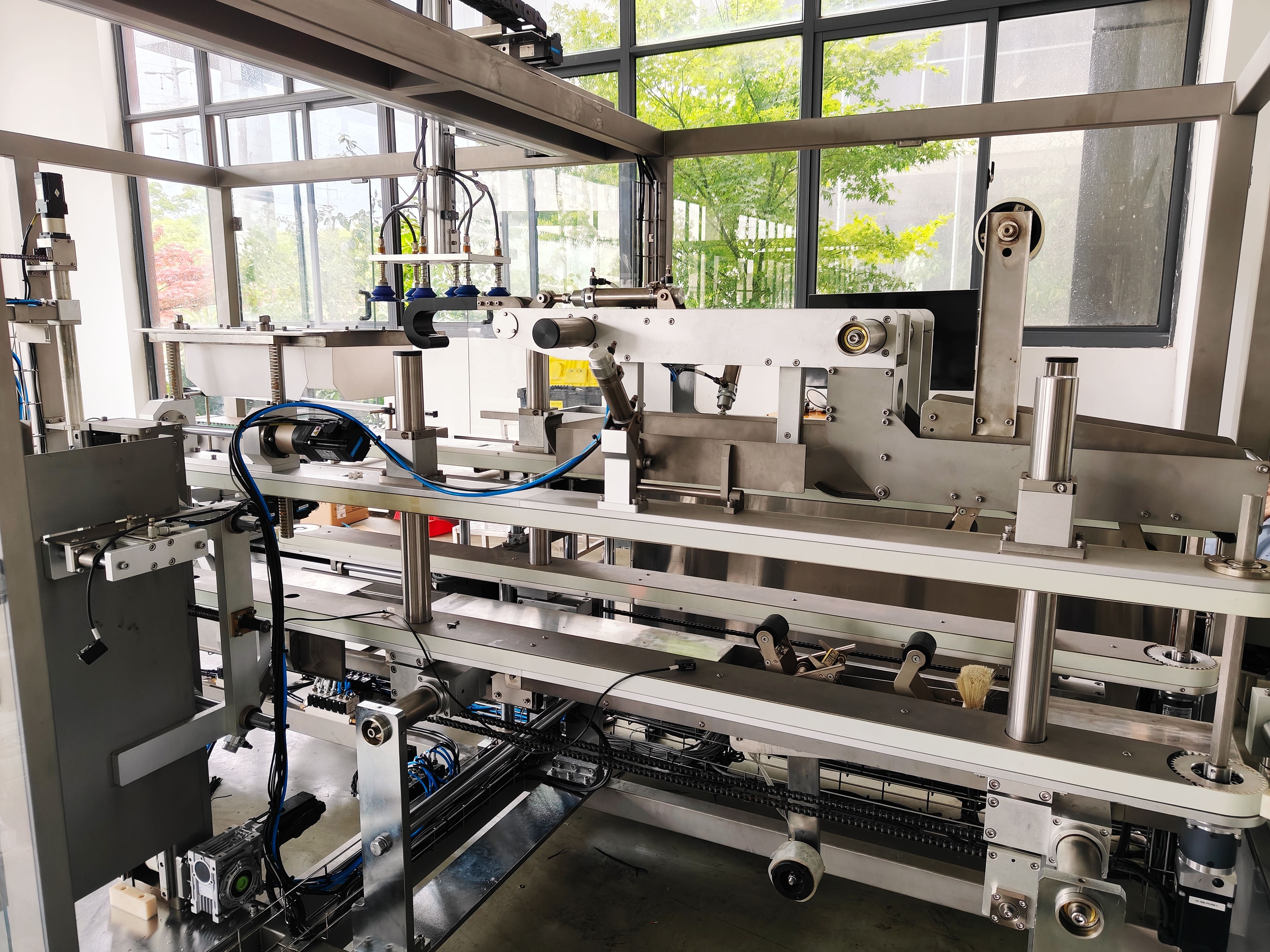

The equipment shown in the images combines a conveyor line with multiple vacuum suction cups. The cups pick up flat products and transfer them to the next position, while the conveyor supports continuous movement through the production process.
This setup is well suited to applications where products need to be handled gently and placed consistently. Vacuum gripping can provide a secure hold across a broad surface, helping reduce the risk of shifting during transfer. The system can also be integrated with other production equipment, depending on the line layout and process requirements.
A Practical Solution for Packaging and Paper Processing
In paperboard packaging and converting operations, flat materials move through several stages, such as feeding, printing, cutting, folding, and packing. Reliable transfer between these stages helps keep the line organized and reduces the need for repeated manual handling.

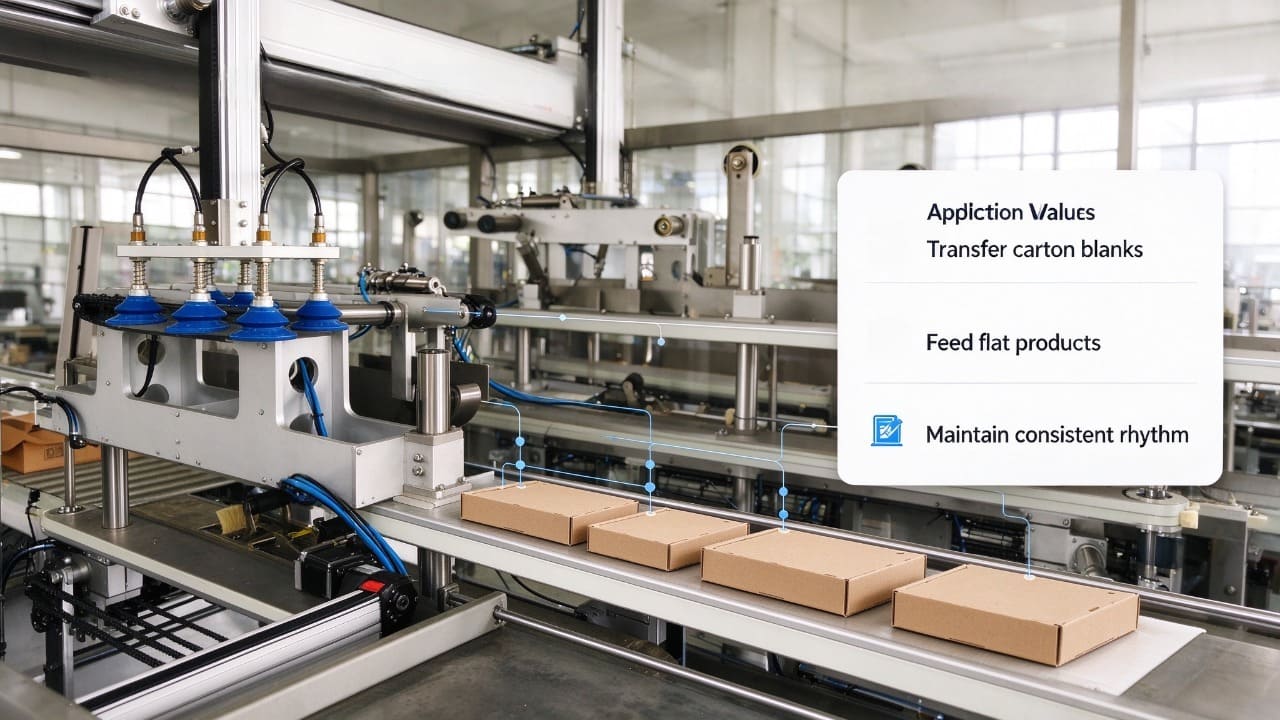

An automated feeding and conveying system may be used to:
- Transfer carton blanks or paperboard sheets between workstations
- Feed flat products into downstream equipment
- Support orderly movement along a production line
- Reduce repetitive lifting and handling tasks
- Maintain a more consistent production rhythm
- Feed flat products into downstream equipment
- Support orderly movement along a production line
- Reduce repetitive lifting and handling tasks
- Maintain a more consistent production rhythm
The exact configuration can vary according to product dimensions, material characteristics, required cycle time, and the layout of the existing line.
Supporting a More Efficient Production Workflow
Automation is most effective when it fits the real needs of the production process. For flat products, factors such as surface condition, stiffness, weight, and stack arrangement can all affect how materials should be picked and transferred.
A vacuum handling system can be configured around these requirements. Suction cup placement, conveyor dimensions, transfer positions, and control settings can be adjusted to suit the product and the surrounding equipment. This makes it possible to create a more connected workflow while keeping product handling controlled and repeatable.
Built Around the Application
Every packaging line is different. Before selecting or configuring an automated handling system, manufacturers should consider the product type, transfer distance, production speed, available floor space, and how the equipment will connect with existing machines.
With the right setup, automated vacuum pick-and-place handling can help packaging and paper-processing businesses improve material flow, reduce manual handling, and create a more consistent production process.
Looking to automate flat-product feeding or transfer in your production line? Share your product details and process requirements to explore a suitable handling solution.
