Precision in Pharma: Automated Capsule Counting and Bottling Machine Workflow
2025-10-10
The pharmaceutical industry demands unwavering accuracy and quality, especially when it comes to packaging. The process of taking countless individual capsules and reliably bottling them is a fascinating display of modern automation. Modern pharmaceutical packaging equipment like the high-speed **capsule filler and counter shown in this video ensures every pill bottle leaves the factory with the correct count, sealed, and ready for the consumer.
The video, showing a high-speed production line, offers a compelling glimpse into how modern pill bottling automation technology ensures quality control and efficiency.
The Automated Journey: From Bulk to Bottle

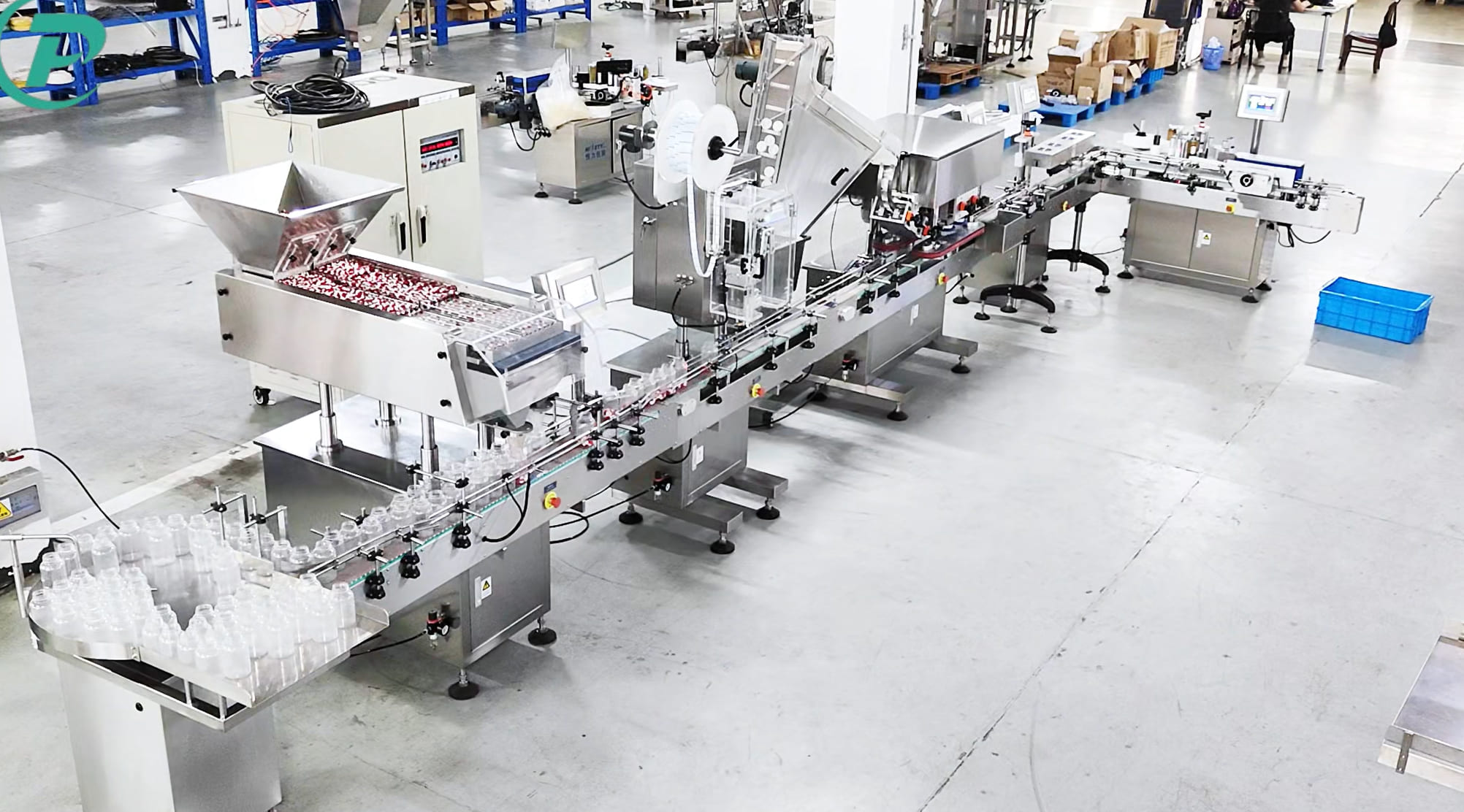

The capsule counting and filling process is a masterclass in efficiency, moving through several key stages on a continuous conveyor system:
1. Empty Bottle Feeding and Alignment
The packaging process begins with an uninterrupted supply of empty plastic bottles. These containers are placed onto a conveyor belt, where they are meticulously aligned and spaced out. Guide rails and specialized mechanisms ensure that each bottle is in the perfect position to receive its contents from the counting machine.
The packaging process begins with an uninterrupted supply of empty plastic bottles. These containers are placed onto a conveyor belt, where they are meticulously aligned and spaced out. Guide rails and specialized mechanisms ensure that each bottle is in the perfect position to receive its contents from the counting machine.
2. High-Speed Electronic Capsule Counting
This is the heart of the operation. Capsules—in this case, two-tone red and white—are fed from a hopper into the electronic capsule counting machine.
This is the heart of the operation. Capsules—in this case, two-tone red and white—are fed from a hopper into the electronic capsule counting machine.

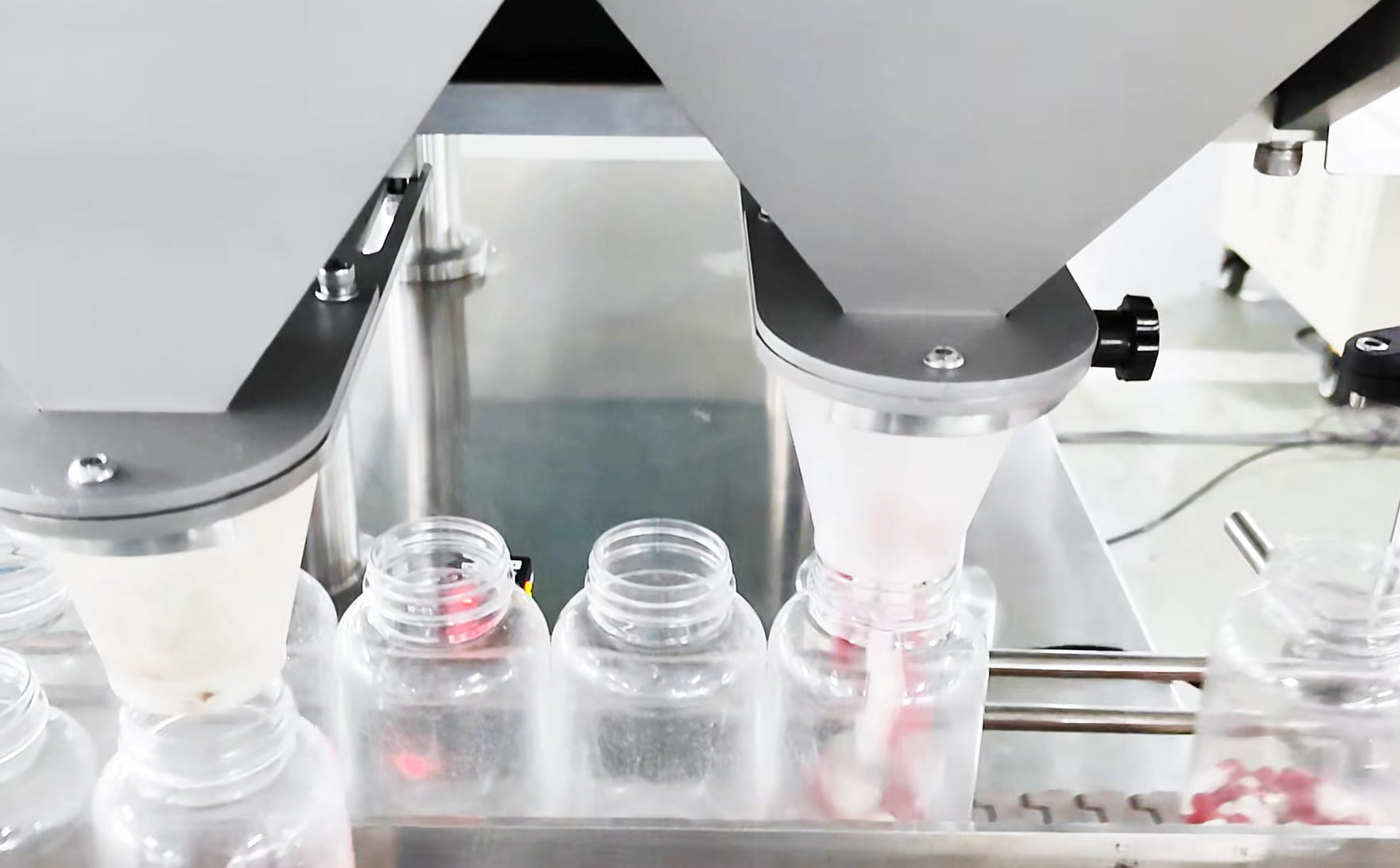

Precision Technology: The machine uses advanced photoelectric sensors to precisely count each capsule as it drops. This critical function ensures that the exact, mandated number of capsules is dispensed into the bottle, upholding GMP standards.

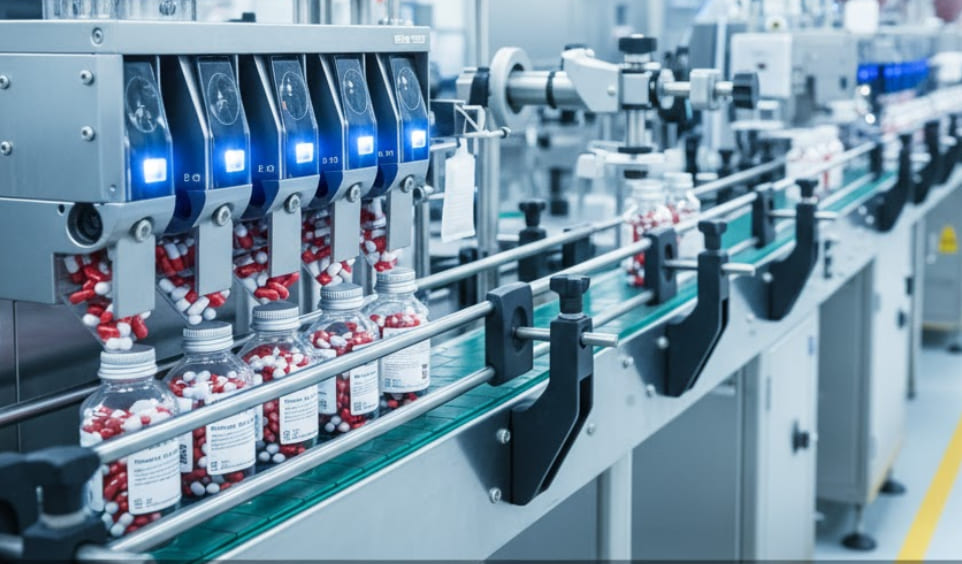

Dual-Channel Filling: We see multiple counting channels working simultaneously, which dramatically increases the speed and throughput of the line, allowing for thousands of bottles to be filled per hour with this high-speed counting equipment.
Dual-Channel Filling: We see multiple counting channels working simultaneously, which dramatically increases the speed and throughput of the line, allowing for thousands of bottles to be filled per hour with this high-speed counting equipment.
3. Desiccant Insertion and Capping
Once the capsules are counted and the bottles are filled, the line moves to the next critical steps:
Once the capsules are counted and the bottles are filled, the line moves to the next critical steps:
Desiccant Insertion: Desiccants (small packets that absorb moisture) are crucial for preserving the quality and shelf life of the medicine. The machine automatically cuts, inserts, and drops a desiccant packet into the filled bottle.

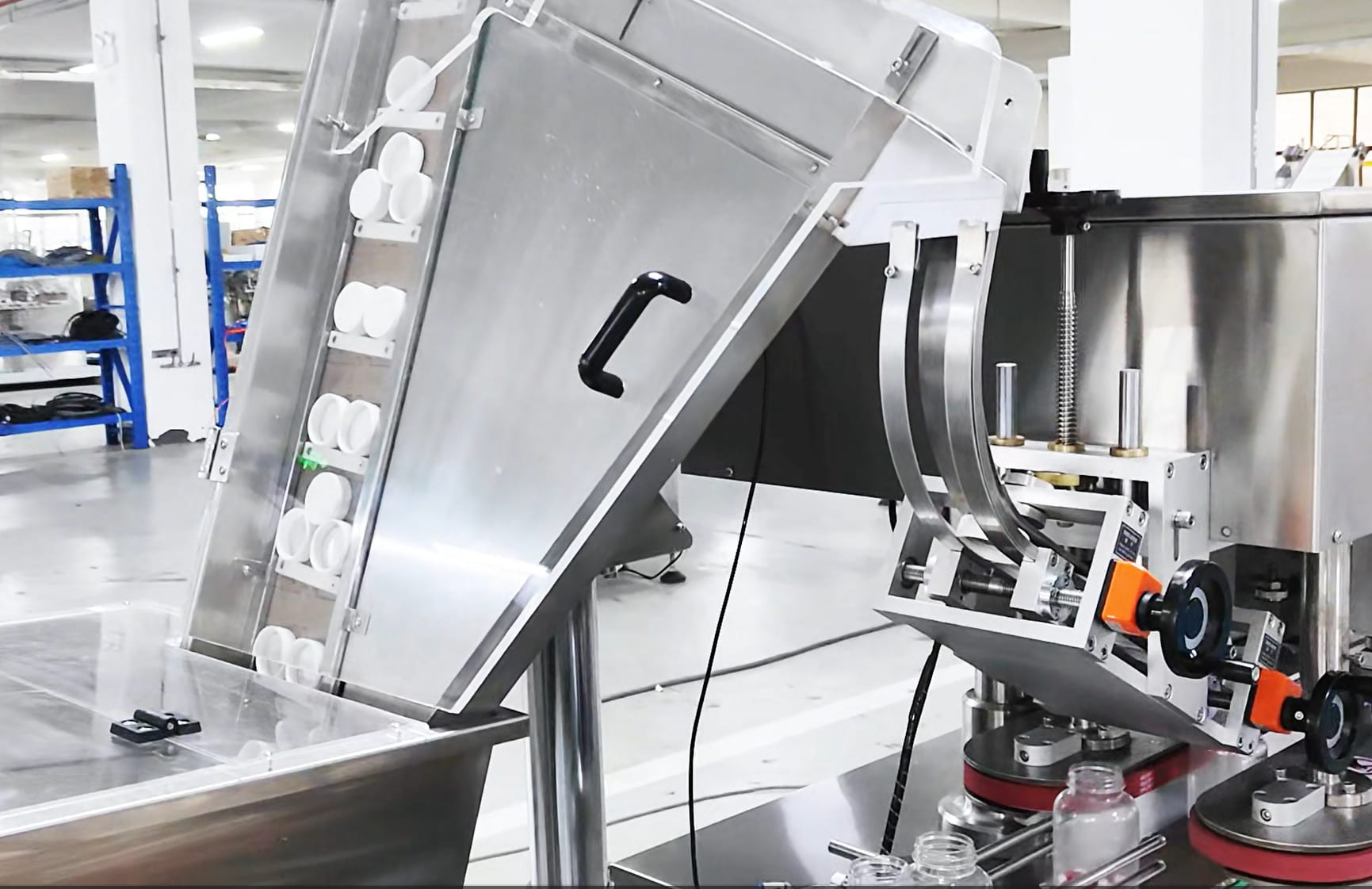

Automated Capping:The filled bottles then move to the capping station. Bottle caps are rapidly screwed on, ensuring a tight, secure seal. This process often includes induction sealing (not explicitly shown) to create a tamper-proof and airtight package, guaranteeing product freshness and integrity.
Automated Capping:The filled bottles then move to the capping station. Bottle caps are rapidly screwed on, ensuring a tight, secure seal. This process often includes induction sealing (not explicitly shown) to create a tamper-proof and airtight package, guaranteeing product freshness and integrity.
4. Labeling and Final Inspection
The final steps prepare the product for retail shelves:
The final steps prepare the product for retail shelves:
Automatic Labeling: The bottles pass through an automatic labeling machine where an adhesive label containing important product information is precisely applied.
Quality Checks: Throughout the line, sensors and vision systems are in place to ensure the count is correct, the cap is secured, and the label is affixed properly, upholding **pharmaceutical packaging regulations.
Quality Checks: Throughout the line, sensors and vision systems are in place to ensure the count is correct, the cap is secured, and the label is affixed properly, upholding **pharmaceutical packaging regulations.
Partner With Us: Your Gateway to Advanced Automation
This automated process isn't just about speed; it's about control and compliance. The use of modern pharmaceutical machinery brings essential benefits:
1. Accuracy and Safety: Electronic counting eliminates human error, guaranteeing patients receive the exact dose quantity.
2. Hygiene and GMP: The hands-off, closed-loop system minimizes the risk of contamination, meeting strict Good Manufacturing Practices (GMP) standards.
3. Efficiency: High-speed automation drastically lowers production costs and allows manufacturers to meet massive global demand.
2. Hygiene and GMP: The hands-off, closed-loop system minimizes the risk of contamination, meeting strict Good Manufacturing Practices (GMP) standards.
3. Efficiency: High-speed automation drastically lowers production costs and allows manufacturers to meet massive global demand.
The seamless flow shown in the video is a powerful reminder of the sophisticated engineering that underlies the safe and reliable delivery of essential medications.
We are actively seeking international partners and overseas traders to bring our state-of-the-art capsule counting and bottling solutions to global markets. If you are a distributor or trade partner looking to offer highly reliable, GMP-compliant pharmaceutical packaging equipment, we invite you to contact us to explore partnership opportunities.
Partner with us for high-quality pharmaceutical machinery and reliable technical support!
