Redefining Throughput: The Engineering Science Behind Ultra-High-Speed Counting at 300 BPM
Redefining Throughput: The Engineering Science Behind Ultra-High-Speed Counting at 300 BPM
In the hyper-competitive landscape of pharmaceutical and nutraceutical packaging, speed and precision are not trade-offs—they are non-negotiable requirements. Manufacturers can no longer rely on legacy counting systems that introduce bottlenecks and compromise fill accuracy at elevated speeds.
In the hyper-competitive landscape of pharmaceutical and nutraceutical packaging, speed and precision are not trade-offs—they are non-negotiable requirements. Manufacturers can no longer rely on legacy counting systems that introduce bottlenecks and compromise fill accuracy at elevated speeds.
We are proud to introduce our Ultra-High-Speed Counting Machine, a technological marvel that is fundamentally redefining packaging throughput, achieving a validated speed of up to 300 Bottles Per Minute (BPM). This is not merely an incremental speed increase; it represents a paradigm shift in production efficiency.
The Technical Pillars of 300 BPM Performance
Achieving such a monumental speed without sacrificing the requisite 99.9%+ accuracy for solid dosage forms (tablets, capsules, softgels) requires sophisticated engineering across multiple subsystems. Our machine’s performance is built on three core technical pillars:
1. Advanced Multi-Channel Vibration Feeding System
The first challenge in high-speed counting is ensuring a smooth, consistent, and separated flow of product. Our solution leverages a Multi-Channel Vibratory System meticulously designed for high-frequency, low-amplitude vibration.
The first challenge in high-speed counting is ensuring a smooth, consistent, and separated flow of product. Our solution leverages a Multi-Channel Vibratory System meticulously designed for high-frequency, low-amplitude vibration.
Optimized Track Geometry: The channels are precision-engineered to gently singulate the tablets/capsules, minimizing product collision and breakage, which is critical for maintaining Product Integrity (PI) at speed.
Intelligent Dosing Control: The system utilizes a closed-loop feedback mechanism connected to a central PLC, dynamically adjusting vibration intensity to ensure the optimal "curtain" of product is presented to the counting array, even during abrupt speed changes or variations in product shape/size.
2. Dual-Array Photoelectric/Vision Counting Technology
The heartbeat of the system is the counting mechanism. To guarantee 99.99% accuracy at 300 BPM, we have moved beyond standard infrared sensors to integrate a Hybrid Dual-Array Counting System:
The heartbeat of the system is the counting mechanism. To guarantee 99.99% accuracy at 300 BPM, we have moved beyond standard infrared sensors to integrate a Hybrid Dual-Array Counting System:
High-Resolution Photoelectric Array: A primary array of vertically aligned, high-density infrared sensors provides robust, rapid counting for basic detection.
Integrated High-Speed Vision System (Optional): For complex or challenging products (transparent capsules, irregularly shaped tablets, or those prone to fragmentation), an optional vision system employs industrial-grade CCD cameras and microsecond flash illumination. This captures a high-definition image of every single unit in freefall, allowing AI-driven image processing to:
Morphological Analysis: Detect and reject fragments or joined products based on pre-set parameters (area, aspect ratio, perimeter).
Transparency Handling: Accurately count translucent or partially transparent softgels, a weakness for traditional IR counters.
3. Dynamic High-Speed Bottling and Rejection
Counting is only half the equation; the counted dose must be filled accurately and rapidly.
Counting is only half the equation; the counted dose must be filled accurately and rapidly.

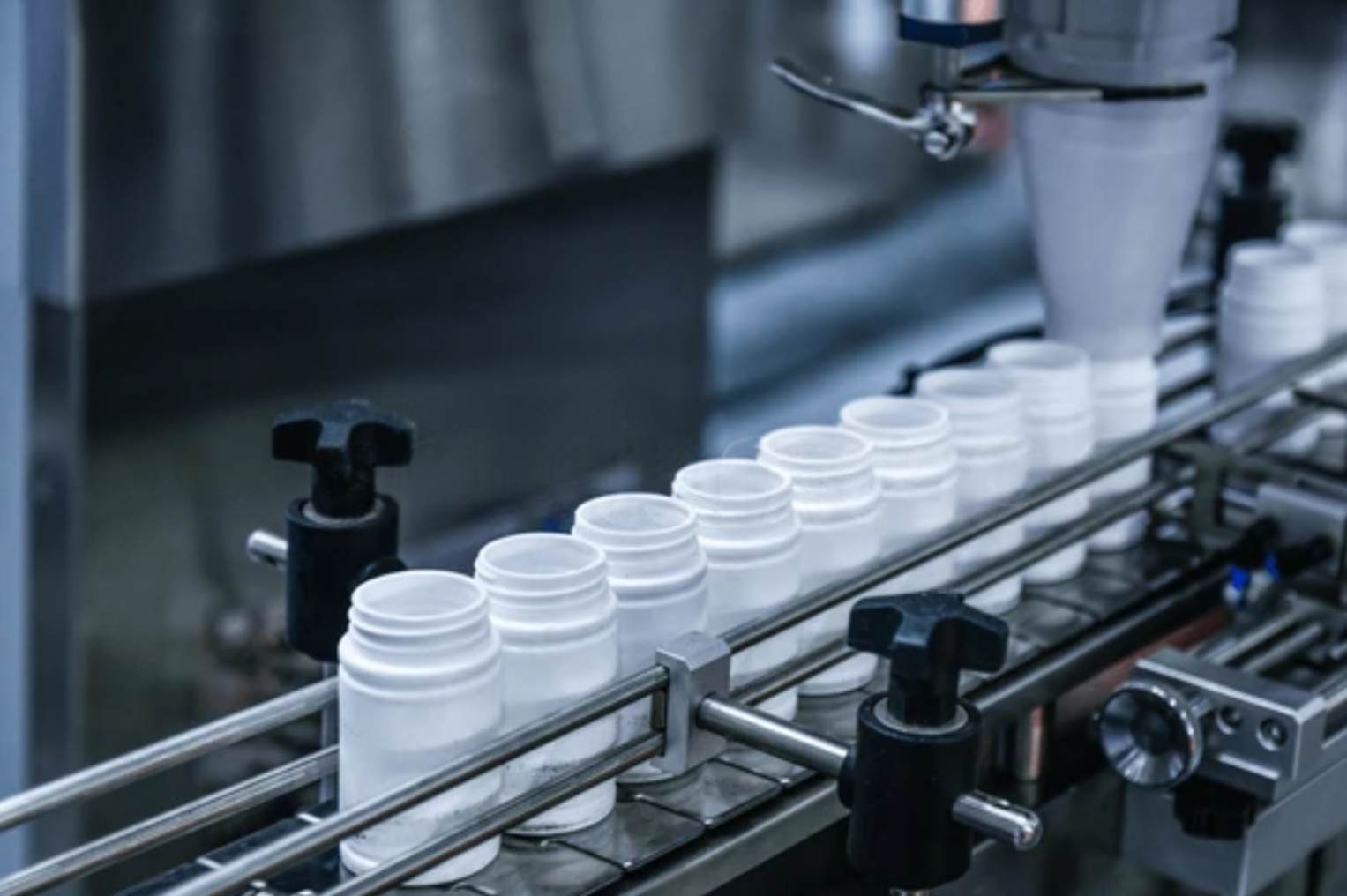

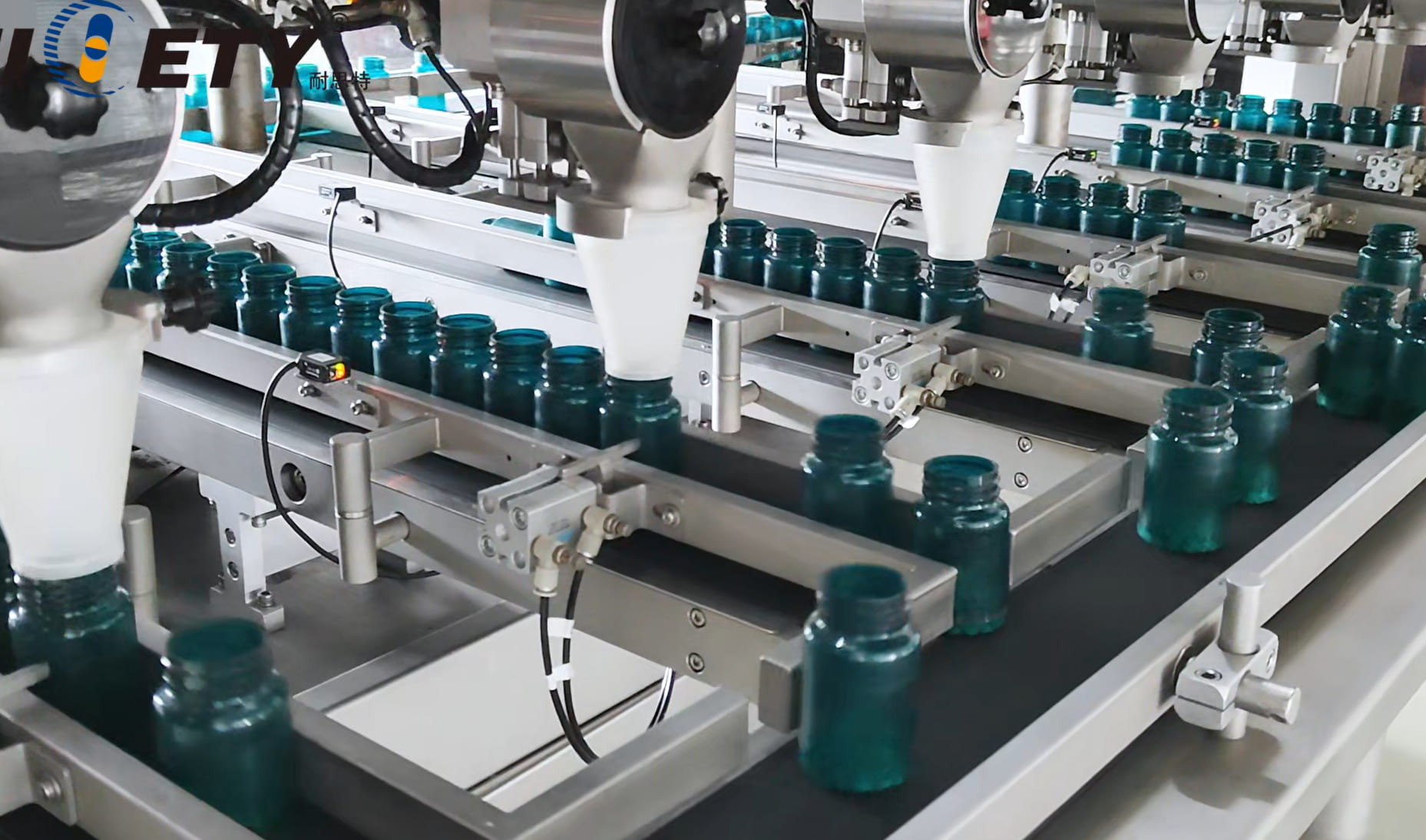

Multi-Nozzle Filling Turret: Our system employs a synchronized multi-nozzle rotary turret paired with high-speed pneumatic gates. This mechanism ensures an instantaneous, precisely timed closure to deliver the exact unit count into the bottle while the counter prepares the next dose, eliminating spillage and count-transfer error.
Zero-Tolerance Rejection: Any bottle flagged by the counting or vision system as potentially under/over-filled is instantly diverted by a pneumatic push-rod reject system without slowing the main production line. This ensures continuous operation and maintains the 300 BPM pace.
The pharmaceutical and supplement markets demand faster time-to-market and increasingly stringent quality control. Our Ultra-High-Speed Counting Machine is engineered to meet these demands head-on. By delivering unprecedented speed, maintaining absolute precision, and simplifying changeover with its advanced PLC control system, this technology is the definitive choice for manufacturers looking to future-proof their packaging lines and maximize profitability.
Ready to see how 300 BPM can transform your operational efficiency? Contact our technical sales team today for a full system specification breakdown and a live demo.
