Model No: GPFK-Y40A

Automatic Bag Lifting and Sealing Machine

Quantity :

Contact Now

TheGPFK-Y40A is a fully automatic bag lifting and sealing machine designed for PE inner bag packaging. It automates carton positioning, bag lifting, air extraction, and sealing, all in one synchronized process — without the need for manual intervention.

This model is ideal for packaging powders, liquids, semi-solids, food, oil-based products, snacks, fruits, condiments, and more.

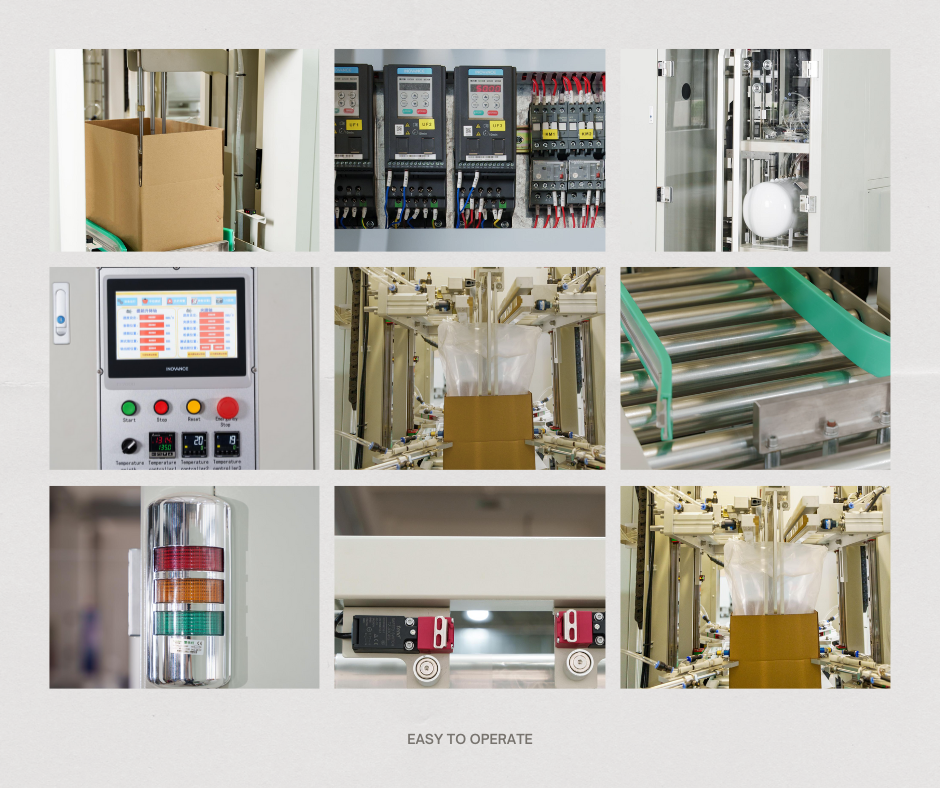

Multi-Servo Precision Control: Ensures synchronized and stable operation of lifting, folding, and sealing
Integrated Bag Handling: Auto bag lift + air exhaust + sealing in one step
Optional Seal Styles: Choose from Straight (–) or M-shape seals
Smart Operation Panel: Touchscreen + manual button operation
Glass Safety Doors: Transparent acrylic doors with door-stop safety function
Alarm Light System: Alerts for missing bags or emergency stop situations

Specification	Value
Bag Lifting Speed	10–12 bags/min
Carton Size Range	L300–600 × W200–500 × H200–500 mm
Power Supply	380V, 3 Phase, 50Hz
Total Power	5 kW
Air Pressure	0.6–0.8 Mpa
Table Height	600 mm
Machine Dimensions	L2200 × W1600 × H2350 mm

Component	Brand
Servo Motors	Inovance
PLC & Touchscreen	Inovance
Pneumatic Components	SMC (Japan)
Conveyor	DEMAG
Sensors & Switches	Omron / Schneider
