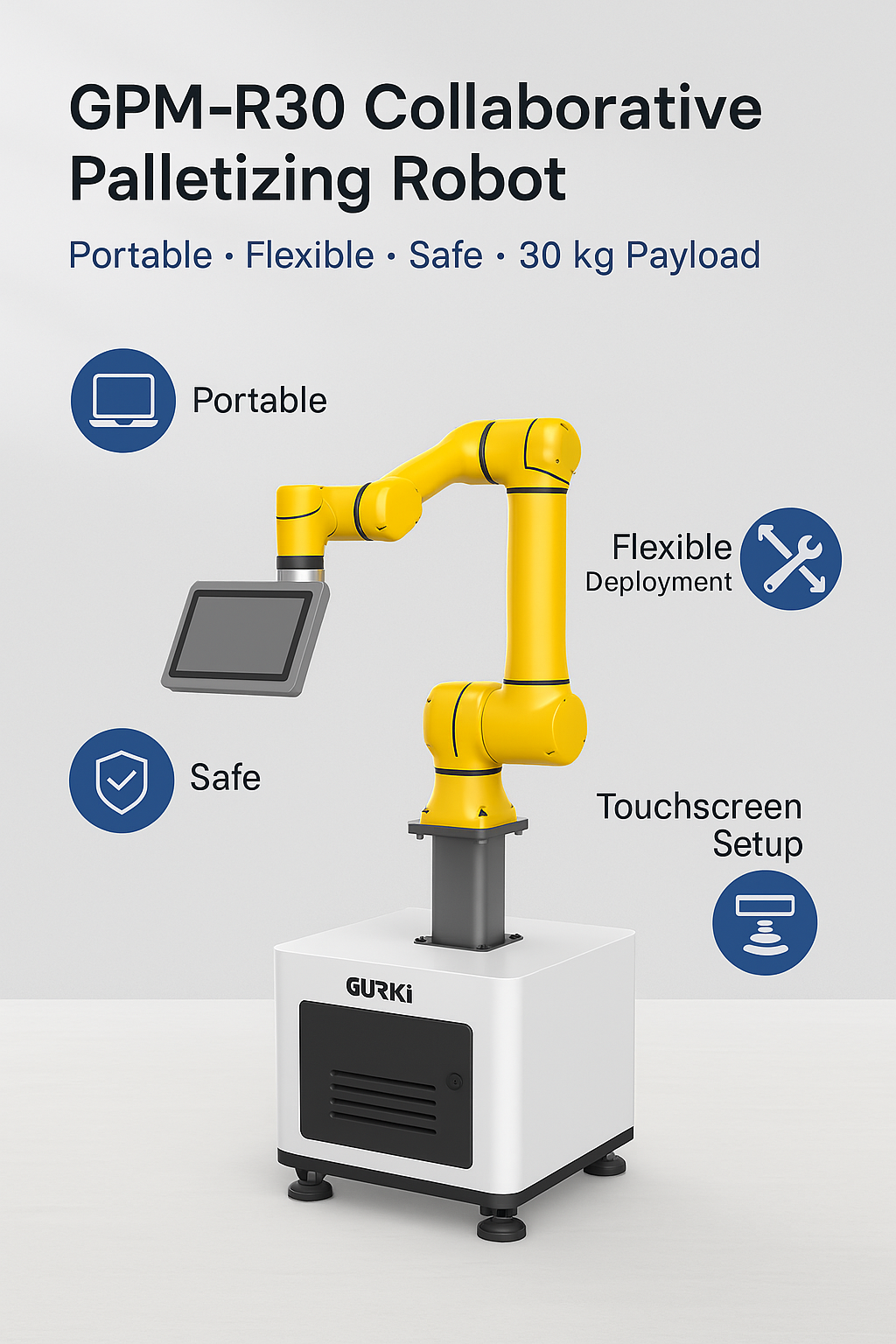

Model No: GPM-R30

Collaborative Palletizing Robot

Quantity :

Contact Now

The GPM-R30 is a compact, portable collaborative palletizing robot designed to work safely alongside human operators while improving productivity and reducing labor costs. It features plug-and-play setup, visual touchscreen control, and supports up to 30kg payload.
Ideal for industries like logistics, food & beverage, pharmaceuticals, daily

Collaborative Design：No need for fencing — equipped with safety radar & CE-certified sensors
No Programming Required：One-click startup, visual drag-and-drop interface, supports 800 stacking paths
Heavy Load & Wide Reach：Payload up to 30kg, working radius of 1800mm
Fully Integrated System：Robot + power + pneumatic + lifting column in one compact base
Visual Operation Panel：15.6" touchscreen with 2D visual interface for fast setup
Flexible Deployment：Move between lines in minutes; supports upstairs use and tight spaces

Specification	Value
Stacking Speed	Stacking Speed 8–10 boxes/min (optional dual-pickup)
Payload	30 kg
Working Radius	1800 mm
Height Adjustment	2200–3000 mm
Stacking Height	300–2400 mm (with pallet)
Arm Length	1800 mm
Compatible Carton Size	L120–600 × W80–600 × H120–600 mm
Pallet Size	1200 × 1200 × 140 mm
Floor Space	6㎡ (including double stack)
Power Supply	220V single-phase
Power Consumption	2500–3300W
Machine Weight	550 kg
Protection Level	IP54
Positioning Accuracy	±0.1 mm
Operating Temp.	0–55°C

Component	Brand
Controller	GURKI
Servo Motors & Drives	Inovance
Pneumatics	AIRTAC
Guide Rails & Cylinders	AIRTAC
Button Switches	Schneider Electric
