Model No: GPTD-40I

Automatic Carton Liner Inserting Machine

Quantity :

Contact Now

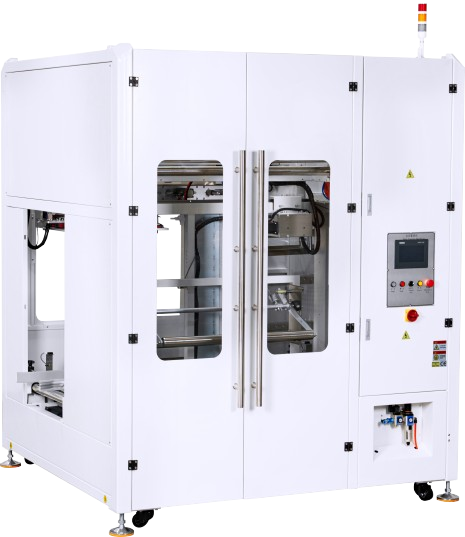

TheGPTD40I is a fully automatic carton liner inserting machine designed for inner bag packaging using PE film. Powered by multi-servo control, it performs carton positioning, film feeding, insertion, cutting, folding, and carton output — all in one synchronized, continuous process. Ideal for food, oils, powder, semi-liquids, and chemical packaging.
Fully compatible with case erectors, bag sealers, and case sealers for a complete unmanned packaging line.

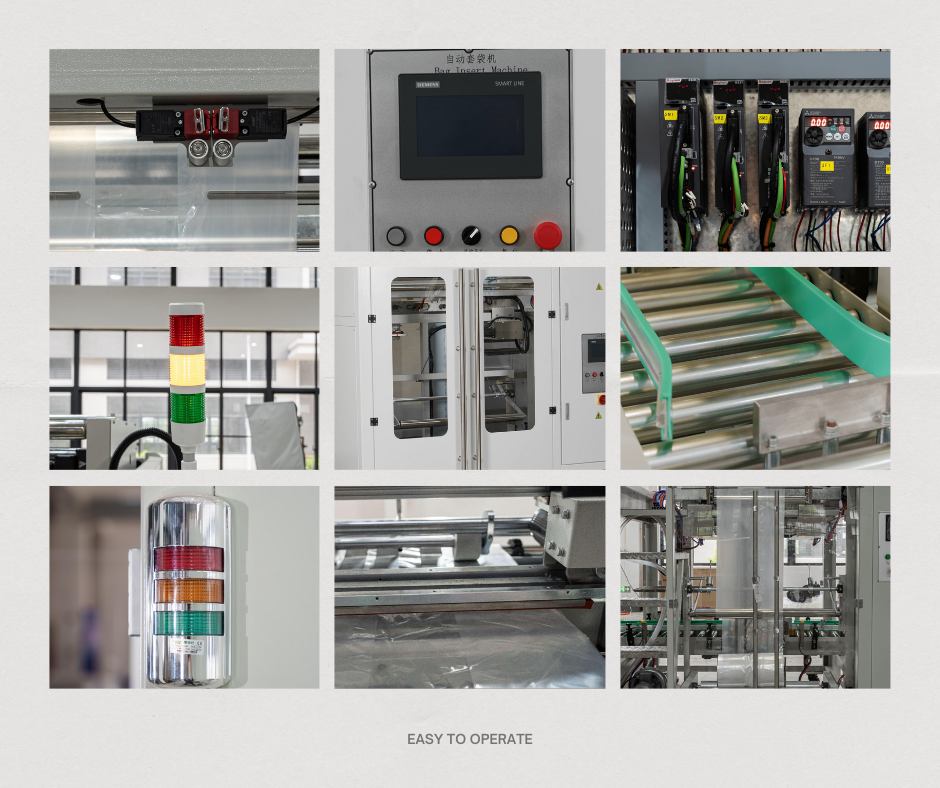

Multi-servo Precision Control：Ensures accurate positioning, stable operation, and high-speed performance
Integrated Liner System：One-step auto film cutting, insertion, and side folding
Constant Temperature Cutter：Heat-seals film with no sticking, no smoke, and no breakage
Secure Double Seal：Twin-edge sealing ensures tight and strong bag fit inside the carton
No Downtime for Film Feed：Continuous film roll loading—no machine stop required
Tool-free Carton Size Change：Manual size change in approx. 10–15 minutes

Specification	Value
Bagging Speed	6–12 cartons/min
Carton Size	L300–600 × W200–500 × H200–500 mm
Power Supply	380V / 3Ph / 50Hz
Power Consumption	6 kW
Air Pressure	0.6–0.8 Mpa
Table Height	600–650 mm
Machine Dimensions	L2200 × W1800 × H2350 mm
Machine Weight	1.5 tons

Component	Brand
PLC & Touchscreen	Inovance
Servo Motors & Drives	Inovance
Pneumatic Components	SMC (Japan)
Conveyor Motor	Taibang
Sensors (Photoelectric)	Omron
Electric Components	Schneider
Conveyor Rollers	DEMAG
